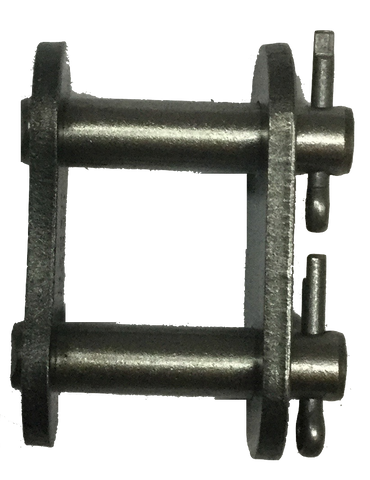

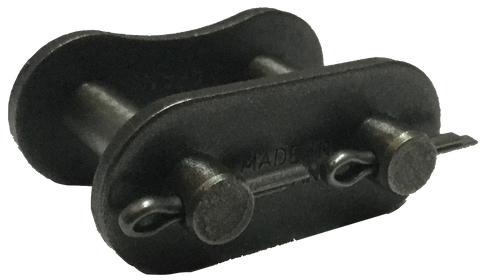

HKK #60 Standard Roller Chain Connecting Link (3/4" Pitch)
Standard roller chain is the most common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.
|Roller Width||0.500”||Plate Thickness 1||0.094”||Average Tensile Strength Lbs||10,000 LB|
|Maximum Allowable Load||2,470 LB||Construction||Riveted or Cottered||Rivet End To Centerline||0.500”|
|Application||Industrial, Agricultural, Automotive drives||Pin Diameter||0.234”||Pitch||0.750”|
|Height||0.689”||Plate Thickness 2||0.094”||Connecting End To Centerline||0.548”|
