6016X1716 16-Tooth, 60 Standard Roller Chain X-Series Sprocket (3/4" Pitch, 1 7/16" Bore)

Out of stock
SKU: 6016X1716
$10.75

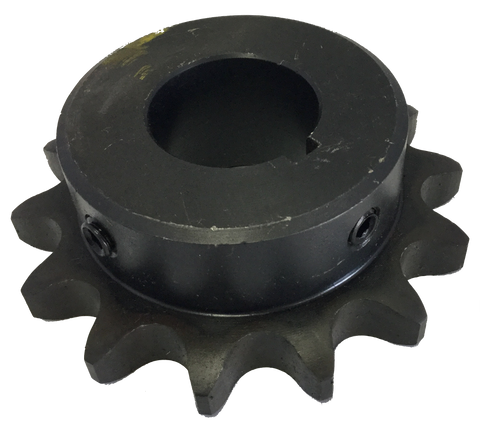

This Type B, minimum bore sprocket drives #60 standard roller chain and comes stock with a 1 7/16” finished bore. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.

Bore Diameter 1 7/16” Construction X-Series Hub Bore Type Finished Bore
Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) Chain Number 60 Pitch 3/4''
Number Of Strands 1 Material Steel Outside Diameter 4 1/4''
Pitch Diameter 3.844'' Number Of Teeth 16
