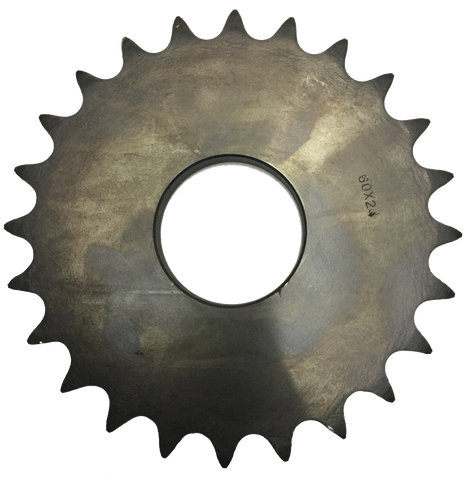

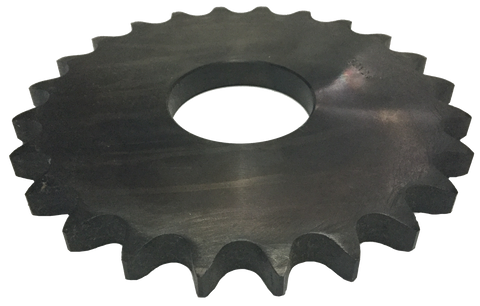

6024X 24-Tooth, 60 Standard Roller Chain X-Series Sprocket (3/4" Pitch)

Only 2 left
$15.46

This 24-Tooth sprocket fits #60 standard roller chain and features an X-Series hub.

Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.)
Pitch 3/4
Bore Diameter 2”
Number Of Strands 1
Construction X-Series Hub
Material Steel
Bore Type 0
Outside Diameter 6 1/8
Bushing Bore Range 0
Pitch Diameter 5.746
Number Of Teeth 24
Chain Number 60
