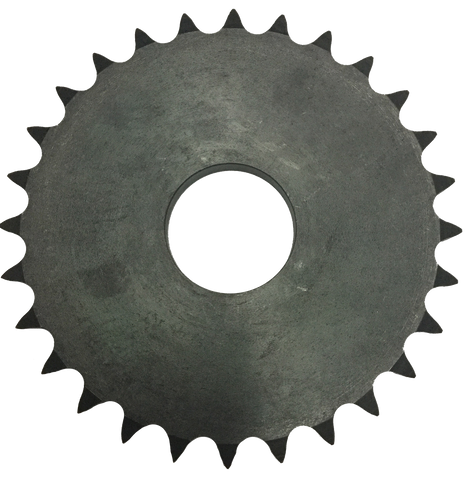

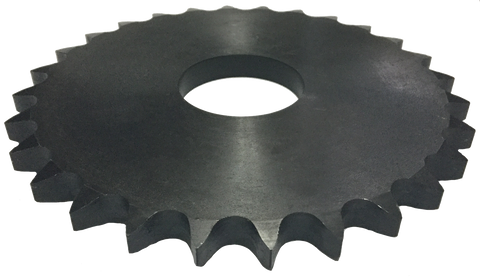

6028X 28-Tooth, 60 Standard Roller Chain X-Series Sprocket (3/4" Pitch)

In stock - 4 items available
$19.55
 More payment options

This 28-Tooth sprocket fits #60 standard roller chain and features an X-Series hub.

Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.)
Pitch 3/4
Bore Diameter 2”
Number Of Strands 1
Construction X-Series Hub
Material Steel
Bore Type 0
Outside Diameter 7 1/8
Bushing Bore Range 0
Pitch Diameter 6.699
Number Of Teeth 28
Chain Number 60
