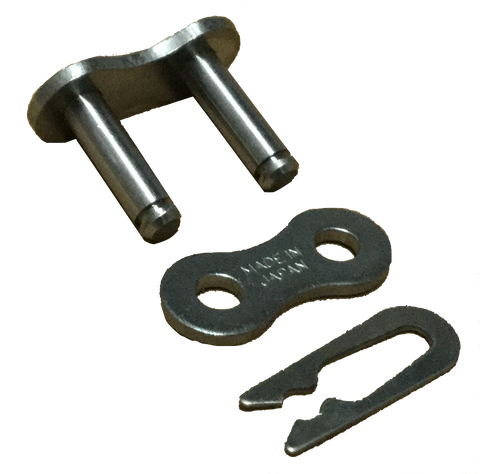

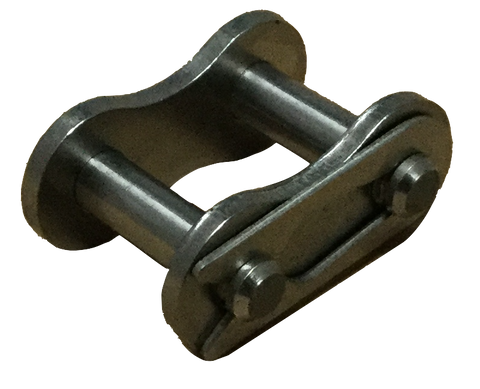

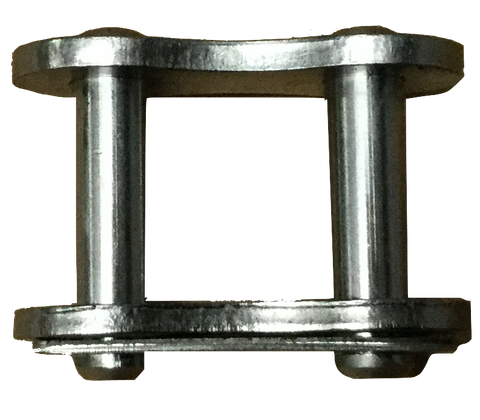

60CL Stainless Steel Roller Chain Connecting Link 3/4" Pitch
Stainless steel chain improves longevity by resisting rust, corrosion, and damage from high temperature.
Standard roller chain is the most common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.
|Roller Width||0.500”||Plate Thickness 1||0.094”||Average Tensile Strength Lbs||6,200 LB|
|Maximum Allowable Load||231 LB||Construction||Riveted or Cottered||Rivet End To Centerline||0.500”|
|Application||Industrial, Agricultural, Automotive drives||Pin Diameter||0.234”||Pitch||0.750”|
|Height||0.689”||Plate Thickness 2||0.094”||Material||Stainless Steel|
|Connecting End To Centerline||0.548”||Diameter||0.469”|
