80A35 35-Tooth, 80 Standard Roller Chain Type A Sprocket (1" Pitch)

Out of stock
SKU: 80A35
Regular price $59.40

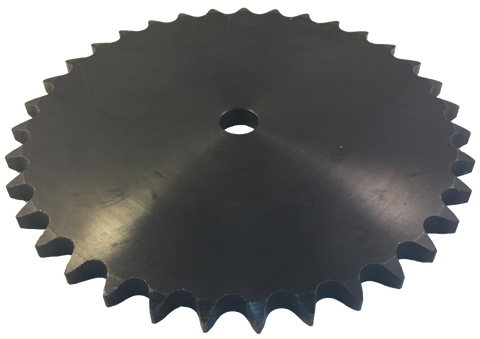

This Type A, steel plate sprocket drives #80 standard roller chain. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain. CUSTOM BORING AVAILABLE - CALL 1-888-868-5891

Bore Diameter 1” Construction Type A Steel Plate Bore Type Rough Stock Bore
Bushing Bore Range 1 - 10.08'' Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) Chain Number 80
Pitch 1'' Number Of Strands 1 Material Steel
Outside Diameter 11.71'' Pitch Diameter 11.156'' Number Of Teeth 35
Thickness 0.575''
