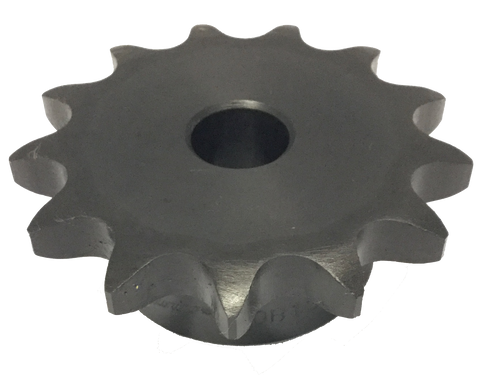

80B13 13-Tooth, 80 Standard Roller Chain Type B Sprocket (1" Pitch)

Out of stock
$18.89

This Type B, minimum bore sprocket drives #80 standard roller chain. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.

Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.)
Pitch 1
Bore Diameter 3/4”
Number Of Strands 1
Construction Type B Minimum Bore
Material Steel
Bore Type Rough Stock Bore
Outside Diameter 4.66
Length Through Bore 1 5/8
Bushing Bore Range 3/4 - 2 1/8
Pitch Diameter 4.179
Number Of Teeth 13
Chain Number 80
