80Q33 33-Tooth, 80 Standard Roller Chain Split Taper Sprocket (1" Pitch)

Out of stock
SKU: 80Q33
$41.54

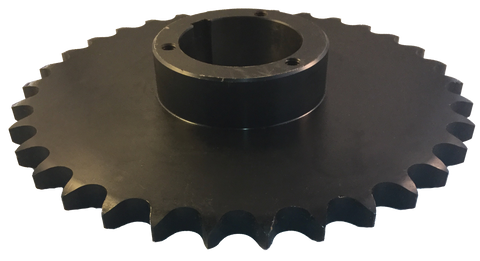

This sprocket drives #80 standard roller chain and features a split taper bushing. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.

Bore Diameter 3/4” Construction Split Taper Bore Type Q
Length Through Bore 2 1/2'' Bushing Bore Range 3/4 - 2 11/16'' Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.)
Chain Number 80 Width 2.781” Pitch 1''
Number Of Strands 1 Material Steel Outside Diameter 11.07''
Pitch Diameter 10.52'' Number Of Teeth 33 Thickness 0.575''
