80Q35 35-Tooth, 80 Standard Roller Chain Split Taper Sprocket (1" Pitch)

Out of stock
$120.81

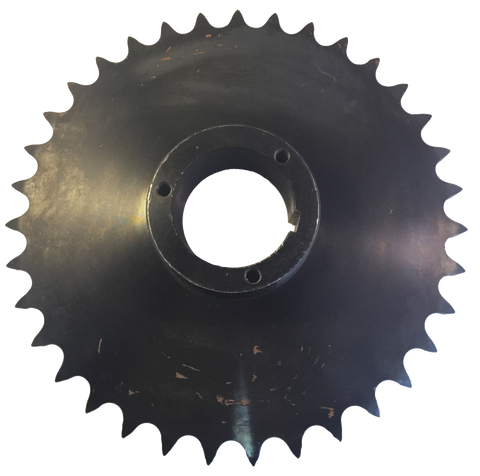

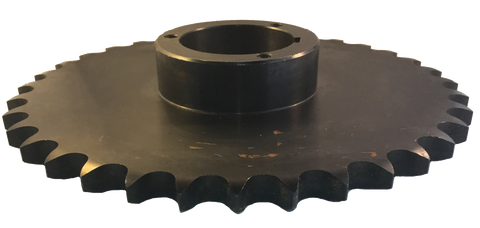

This sprocket drives #80 standard roller chain and features a split taper bushing. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.

Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.)
Pitch 1
Bore Diameter 3/4”
Number Of Strands 1
Construction Split Taper
Material Steel
Bore Type Q
Outside Diameter 11.71
Length Through Bore 2 1/2
Bushing Bore Range 3/4 - 2 11/16
Pitch Diameter 11.156
Number Of Teeth 35
Chain Number 80
