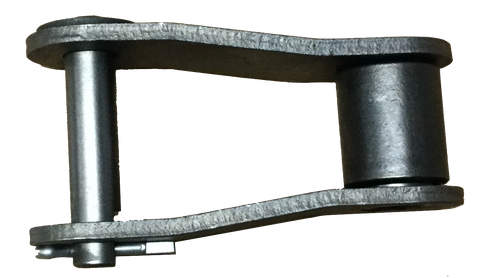

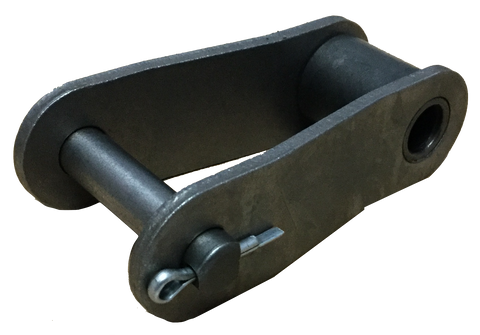

81X Lumber Chain Offset Link (2.609" Pitch)
Offset links, or half links, are used when a chain needs to be extended/shortened by only half the length of the normal pitch. These links feature cotterpins to seamlessly connect to original chain.
This standard roller chain is most common in lumber conveyor mechanisms.
| Roller Width | 1.062” | Plate Thickness 1 | 0.156” | Average Tensile Strength Lbs | 27,500 LB |
| Construction | Cottered | Rivet End To Centerline | 0.937” | Application | Extend/reduce chain length by 1/2 pitch. |
| Pin Diameter | 0.437” | Pitch | 2.609” | Height | 1.122” |
| Plate Thickness 2 | 0.156” | Connecting End To Centerline | 1.125” | Diameter | 0.905” |
