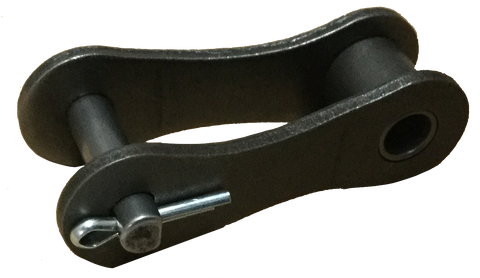

A2050 Double Pitch Stainless Steel Roller Chain Offset Link (1 1/4" Pitch)

  • $10.05

Offset links, or half links, are used when a chain needs to be extended/shortened by only half the length of the normal pitch. These links feature cotterpins to seamlessly connect to original chain.

Double pitch roller chains are manufactured similarly to standard roller chain but with twice the pitch distance. Drive chains (A series chains) are designed with a figure-8 shaped side plate, and conveyor chains (C series) feature straight side plates. This lighter-weight chain is ideal for lower loads, moderate speeds, and larger sprockets. Stainless steel chain improves longevity by resisting rust, corrosion, and damage from high temperature.

Roller Width 0.375” Plate Thickness 1 0.079” Average Tensile Strength Lbs 4,970 LB
Construction Cottered Rivet End To Centerline 0.399” Application Extend/reduce chain length by 1/2 pitch.
Pin Diameter 0.200” Width 0.854'' Pitch 1.250”
Height 0.594” Plate Thickness 2 0.079” Material Stainless Steel
Connecting End To Centerline 0.455” Diameter 0.400”
