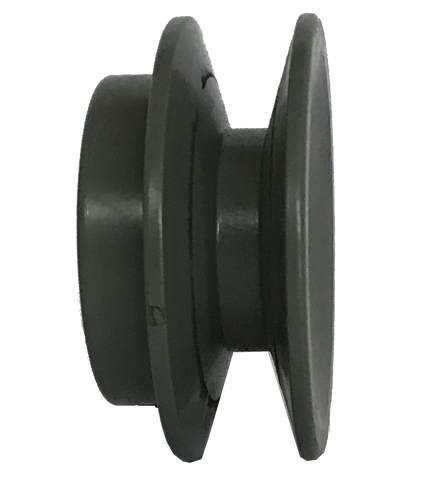

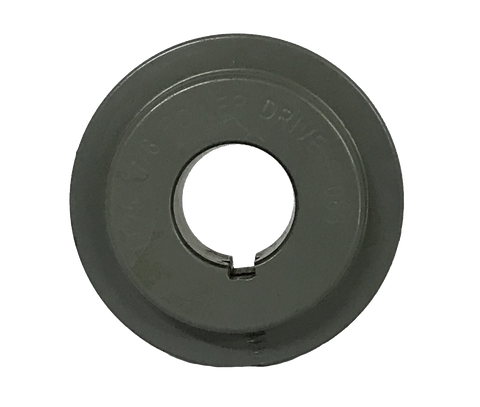

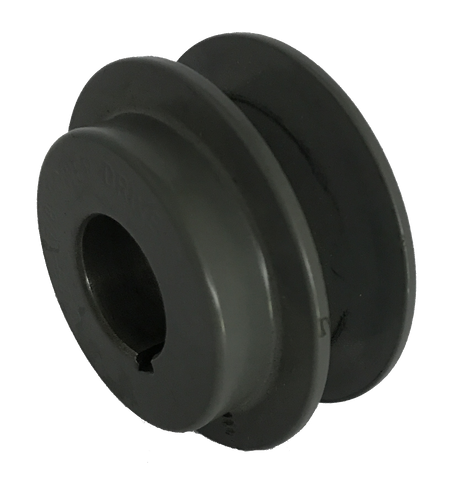

AK22X78 1-Groove 3L/4L/A Series Finished Bore Sheave (7/8" Bore)
This 1-groove cast iron sheave fits 3L, 4L, and A Series belts and comes stock with a 7/8” finished bore with keyway. This is a light-duty sheave best used with fractional horse power drives. All our sheaves are manufactured to meet all common industry standards.
|Bore Diameter||7/8''||Bore Type||Finished with Keyway||Length Through Bore||0.938”|
|Face Width||0.656”||Pulley Construction||Plain||Application||Fractional Horse Power Drive|
|Width||1.094”||Material||Cast Iron||Number Of Grooves||1|
|Outside Diameter||2.200”||Pitch Diameter||2.46 (3L Section) in, 2.8 (4L Section/A Section) in||Keyway Size||3/16 x 3/32 in|
