AK46X118 1-Groove 3L/4L/A Series Finished Bore Sheave (1 1/8" Bore)

  • $27.62

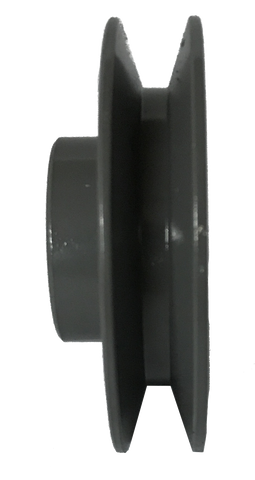

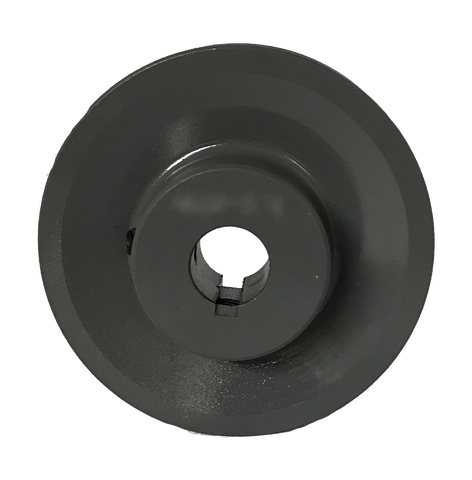

This 1-groove cast iron sheave fits 3L, 4L, and A Series belts and comes stock with a 1 1/8” finished bore with keyway. This is a light-duty sheave best used with fractional horse power drives. All our sheaves are manufactured to meet all common industry standards.

Bore Diameter 1 1/8'' Bore Type Finished with Keyway Length Through Bore 1.156”
Face Width 0.750” Pulley Construction Webbed Application Fractional Horse Power Drive
Width 1.219” Material Cast Iron Number Of Grooves 1
Outside Diameter 4.450” Pitch Diameter 3.86 (3L Section) in, 4.2 (4L Section/A Section) in Keyway Size 1/4 x 1/8 in
