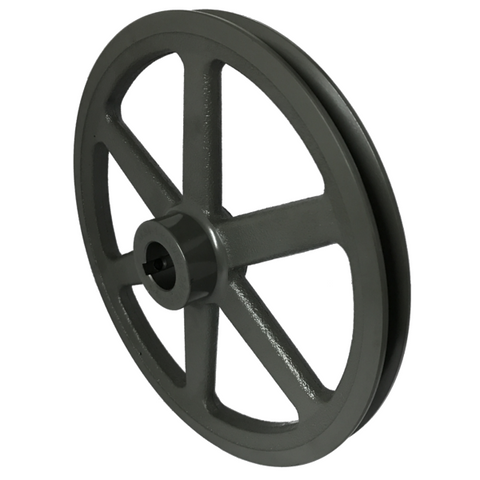

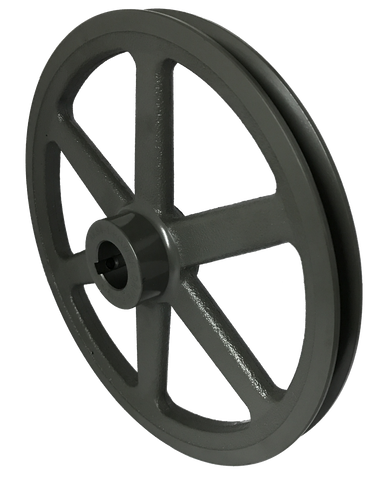

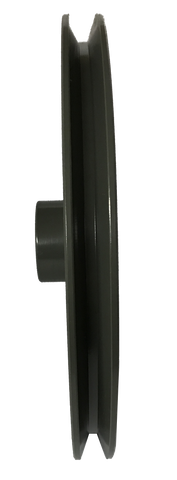

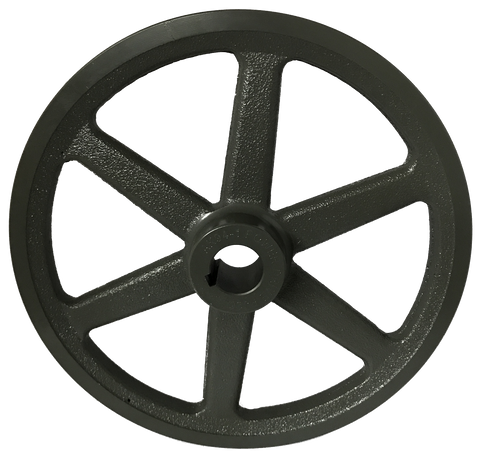

AK94X1 1-Groove 3L/4L/A Series Finished Bore Sheave (1" Bore)

  • $17.33

This 1-groove cast iron sheave fits 3L, 4L, and A Series belts and comes stock with a 1” finished bore with keyway. This is a light-duty sheave best used with fractional horse power drives. All our sheaves are manufactured to meet all common industry standards.

Bore Diameter 1'' Bore Type Finished with Keyway Length Through Bore 1.469”
Face Width 0.750” Pulley Construction Spoked Application Fractional Horse Power Drive
Width 1.531” Material Cast Iron Number Of Grooves 1
Outside Diameter 9.250” Pitch Diameter 8.66 (3L Section) in, 9 (4L Section/A Section) in Keyway Size 1/4 x 1/8 in
