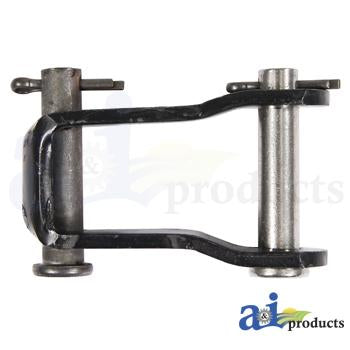

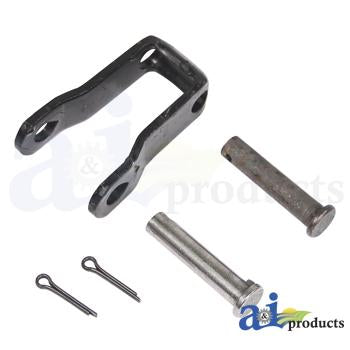

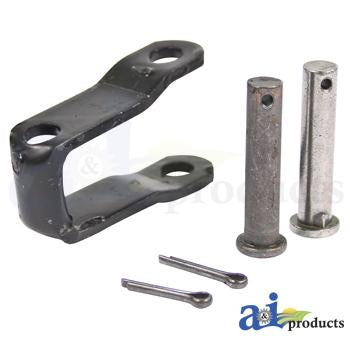

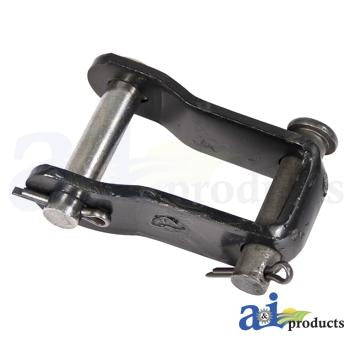

AL667X-CO Steel Pintle Chain Connecting Link (2 5/16" Pitch)
This connecting link fits chain AL667X with CO attachment.
Plate Thickness 1 | 0.170” | Inside Width | 1.125'' | Average Tensile Strength Lbs | 15,000 LB |
Construction | Cottered | Rivet End To Centerline | 1.007” | Tab Width | 1.125'' |
Height Centerline To Tab | 2.594'' | Application | Agricultural machinery, Conveyors, Forestry machinery | Pin Diameter | 0.438” |
Width | 1.500” | Pitch | 2.313” | Height | 0.937” |
Plate Thickness 2 | 0.170” | Connecting End To Centerline | 1.150” | Height Centerline To Hole | 2.031'' |
Hole Diameter | 0.328'' | Thickness | 0.250'' |
