BK32X-3-4 1-Groove 4L/5L/A/B Series Finished Bore Sheave (3/4" Bore)

Only 1 left
$94.11

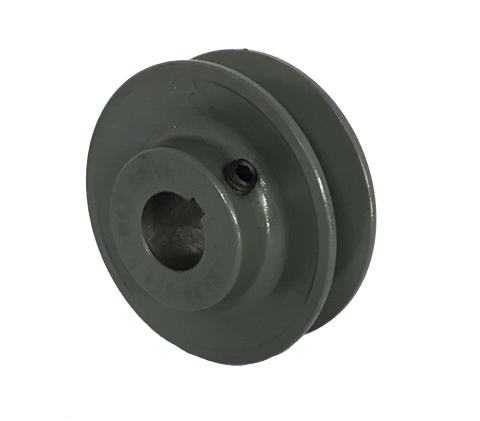

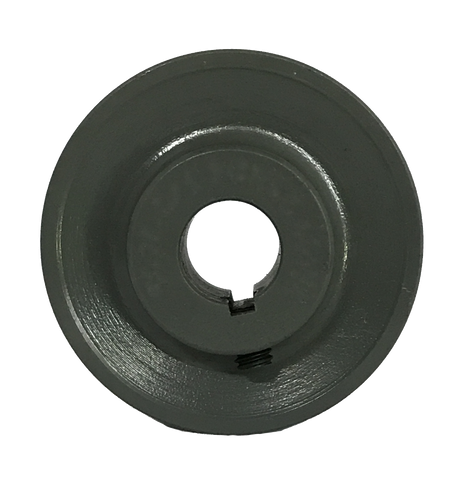

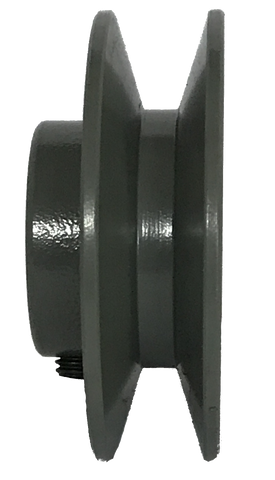

This 1-groove cast iron sheave fits 4L, 5L, A, and B Series belts and comes stock with a 3/4” finished bore with keyway. All our sheaves are manufactured to meet all common industry standards.

Bore Diameter 3/4'' Bore Type Finished with Keyway Length Through Bore 1.063”
Face Width 0.813” Pulley Construction Webbed Application 4L/A & 5L/B Classical Belt & FHP Drives
Width 1.219” Material Cast Iron Number Of Grooves 1
Outside Diameter 3.350” Pitch Diameter 2.6 (A/4L) in, 3 (B/5L) in Keyway Size 3/16 x 3/32 in
