BK36X-5-8 1-Groove 4L/5L/A/B Series Finished Bore Sheave (5/8" Bore)

Out of stock
SKU: BK36X-5-8
$22.41

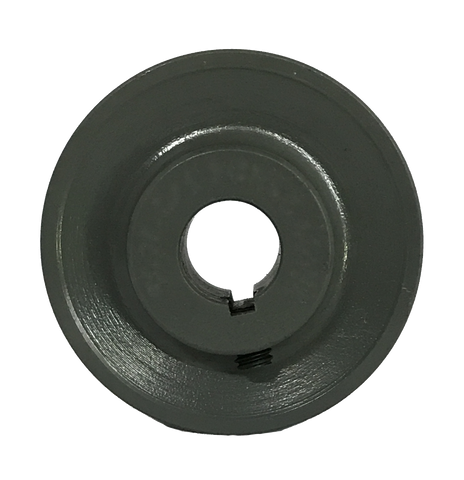

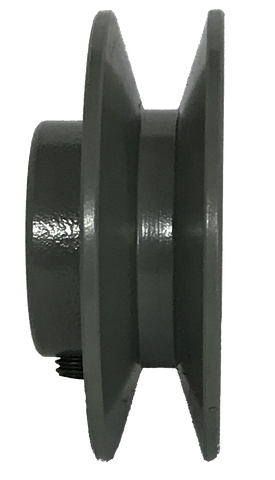

This 1-groove cast iron sheave fits 4L, 5L, A, and B Series belts and comes stock with a 5/8” finished bore with keyway. All our sheaves are manufactured to meet all common industry standards.

Bore Diameter 5/8'' Bore Type Finished with Keyway Length Through Bore 1.156”
Face Width 0.875” Pulley Construction Webbed Application 4L/A & 5L/B Classical Belt & FHP Drives
Width 1.281” Material Cast Iron Number Of Grooves 1
Outside Diameter 3.750” Pitch Diameter 3 (A/4L) in, 3.4 (B/5L) in Keyway Size 3/16 x 3/32 in
