BK65X58 1-Groove 4L/5L/A/B Series Finished Bore Sheave (5/8" Bore)

Out of stock
$0.00

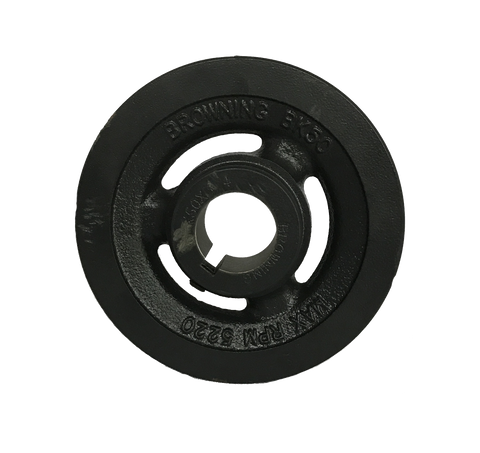

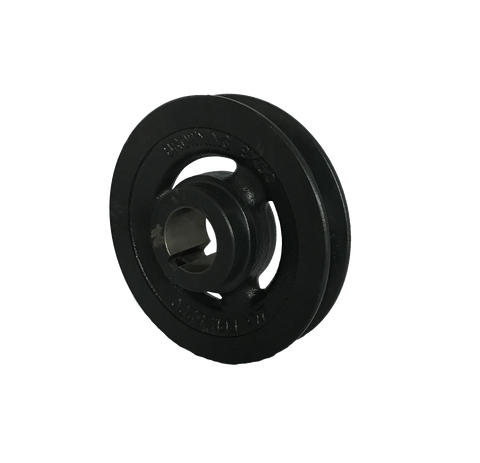

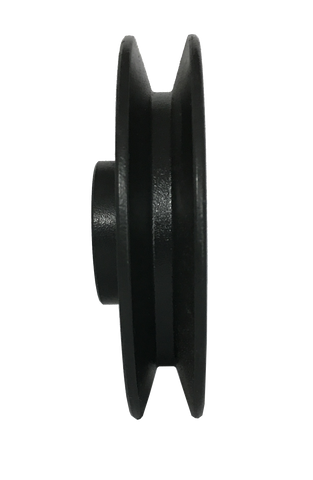

This 1-groove cast iron sheave fits 4L, 5L, A, and B Series belts and comes stock with a 5/8” finished bore with keyway. All our sheaves are manufactured to meet all common industry standards.

Application 4L/A & 5L/B Classical Belt & FHP Drives
Bore Diameter 5/8
Material Cast Iron
Bore Type Finished with Keyway
Number Of Grooves 1
Outside Diameter 6.250”
Length Through Bore 1.156”
Face Width 0.875”
Pitch Diameter 5-1/2 (A/4L) in, 5.9 (B/5L) in
Pulley Construction Spoked
Keyway Size 3/16 x 3/32 in
