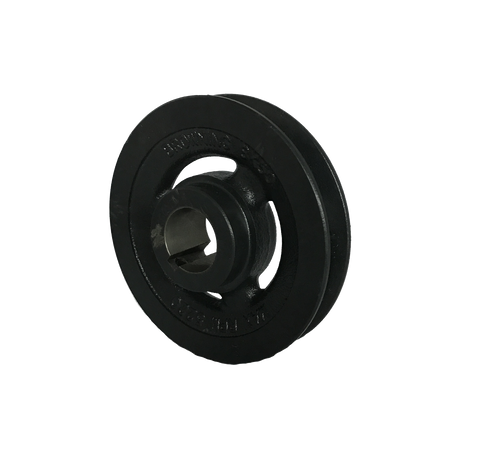

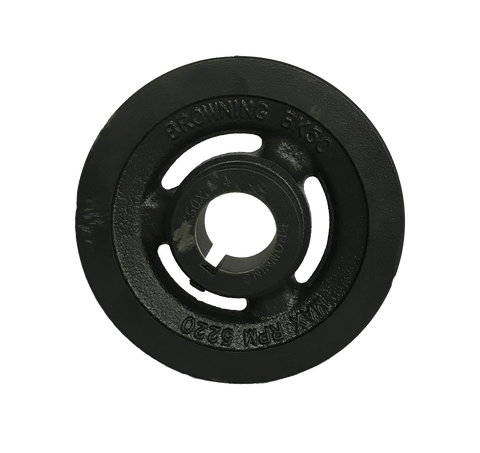

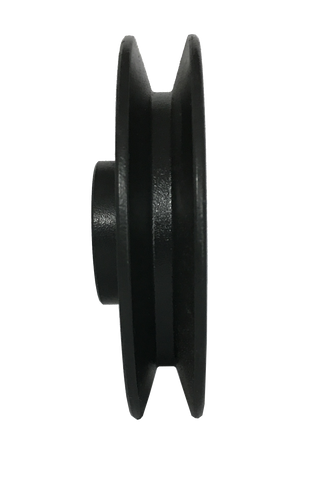

BK77X1 1-Groove 4L/5L/A/B Series Finished Bore Sheave (1" Bore)

Out of stock
$0.00

This 1-groove cast iron sheave fits 4L, 5L, A, and B Series belts and comes stock with a 1” finished bore with keyway. All our sheaves are manufactured to meet all common industry standards.

Bore Diameter 1'' Bore Type Finished with Keyway Length Through Bore 1.469”
Face Width 0.875” Pulley Construction Spoked Application 4L/A & 5L/B Classical Belt & FHP Drives
Width 1.531” Material Cast Iron Number Of Grooves 1
Outside Diameter 7.450” Pitch Diameter 6.7 (A/4L) in, 7.1 (B/5L) in Keyway Size 1/4 x 1/8 in
