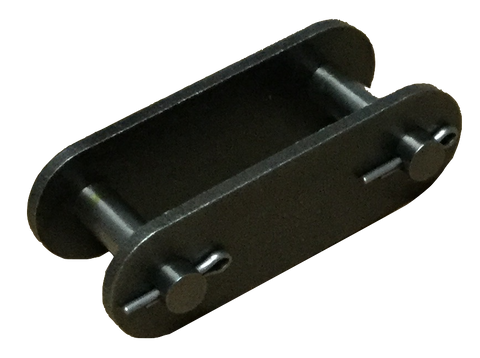

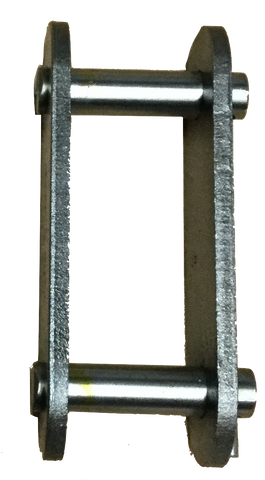

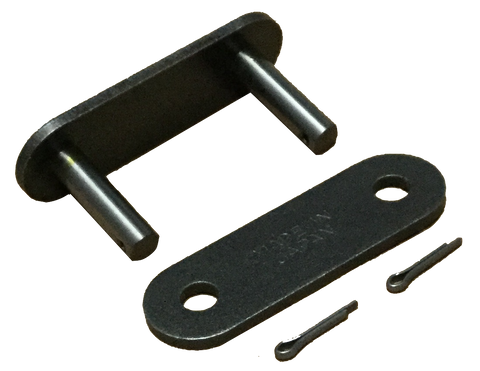

C2040 Double Pitch Roller Chain Connecting Link (1" Pitch)
Double pitch roller chains are manufactured similarly to standard roller chain but with twice the pitch distance. Drive chains (A series chains) are designed with a figure-8 shaped side plate, and conveyor chains (C series) feature straight side plates. This lighter-weight chain is ideal for lower loads, moderate speeds, and larger sprockets.
| Roller Width | 0.313” | Plate Thickness 1 | 0.060” | Average Tensile Strength Lbs | 4,300 LB |
| Maximum Allowable Load | 600 LB | Construction | Riveted or Cottered | Rivet End To Centerline | 0.323” |
| Application | Conveying | Pin Diameter | 0.156” | Pitch | 1.000” |
| Height | 0.450” | Plate Thickness 2 | 0.060” | Connecting End To Centerline | 0.378” |
| Diameter | 0.312” |
