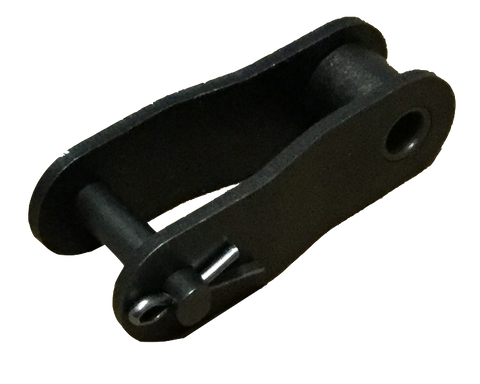

C2040 Double Pitch Roller Chain Offset Link (1" Pitch)
Offset links, or half links, are used when a chain needs to be extended/shortened by only half the length of the normal pitch. These links feature cotterpins to seamlessly connect to original chain.
Double pitch roller chains are manufactured similarly to standard roller chain but with twice the pitch distance. Drive chains (A series chains) are designed with a figure-8 shaped side plate, and conveyor chains (C series) feature straight side plates. This lighter-weight chain is ideal for lower loads, moderate speeds, and larger sprockets.
|Roller Width||0.313”||Plate Thickness 1||0.060”||Average Tensile Strength Lbs||4,300 LB|
|Maximum Allowable Load||600 LB||Construction||Cottered||Rivet End To Centerline||0.323”|
|Application||Extend/reduce chain length by 1/2 pitch.||Pin Diameter||0.156”||Pitch||1.000”|
|Height||0.450”||Plate Thickness 2||0.060”||Connecting End To Centerline||0.378”|
