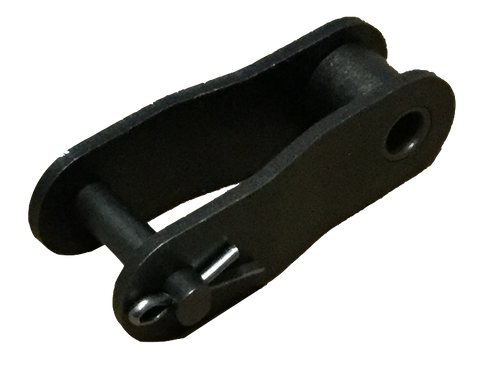

C2050 Double Pitch Roller Chain Offset Link (1 1/4" Pitch)

In stock - 4 items available
$3.26

Offset links, or half links, are used when a chain needs to be extended/shortened by only half the length of the normal pitch. These links feature cotterpins to seamlessly connect to original chain.



Double pitch roller chains are manufactured similarly to standard roller chain but with twice the pitch distance. Drive chains (A series chains) are designed with a figure-8 shaped side plate, and conveyor chains (C series) feature straight side plates. This lighter-weight chain is ideal for lower loads, moderate speeds, and larger sprockets.

Application Extend/reduce chain length by 1/2 pitch.
Pitch 1.250”
Roller Width 0.375”
Height 0.591”
Plate Thickness 1 0.080”
Plate Thickness 2 0.080”
Average Tensile Strength 7,200 LB
Maximum Allowable Load 1,000 LB
Construction Cottered
Rivet End To Centerline 0.400”
Connecting End To Centerline 0.467”
Pin Diameter 0.200”
