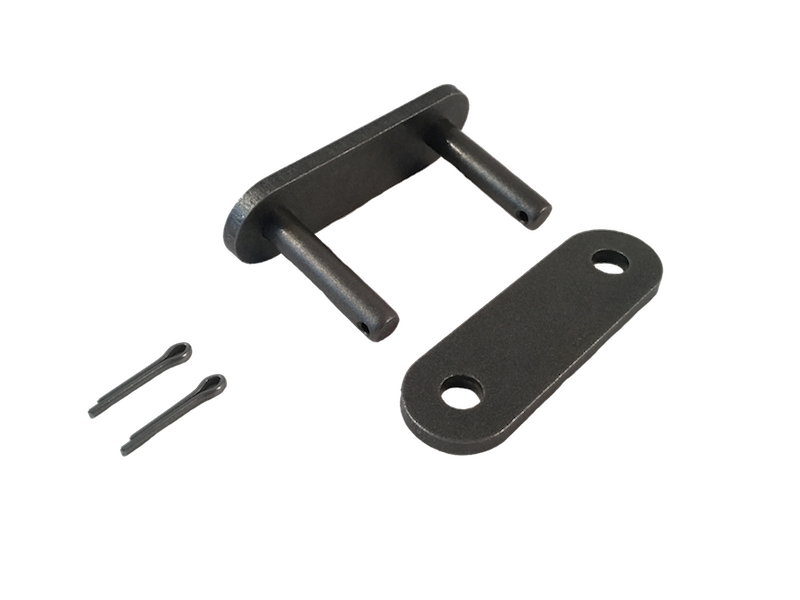

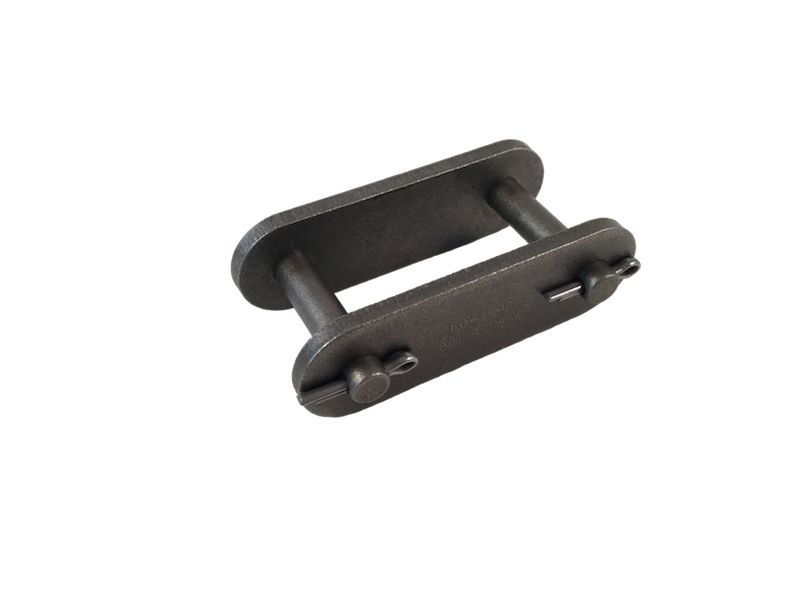

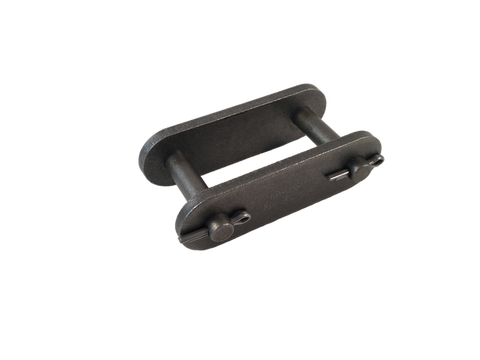

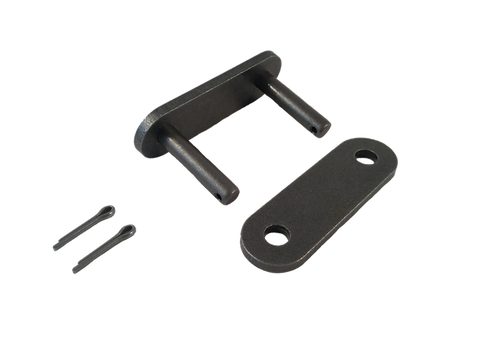

C2060H Heavy Double Pitch Roller Chain Connecting Link 1 1/2" Pitch

In stock - 19 items available
$2.50

Heavy series roller chain is manufactured with thicker link plates compared to standard roller chain to help against fatigue with greater shock loads.

Double pitch roller chains are manufactured similarly to standard roller chain but with twice the pitch distance. Drive chains (A series chains) are designed with a figure-8 shaped side plate, and conveyor chains (C series) feature straight side plates. This lighter-weight chain is ideal for lower loads, moderate speeds, and larger sprockets.

Roller Width 0.500” Plate Thickness 1 0.125” Average Tensile Strength Lbs 10,000 LB
Maximum Allowable Load 1,400 LB Construction Riveted or Cottered Rivet End To Centerline 0.565”
Application Conveying Pin Diameter 0.234” Pitch 1.500”
Height 0.670” Plate Thickness 2 0.125” Connecting End To Centerline 0.657”
Diameter 0.469”
