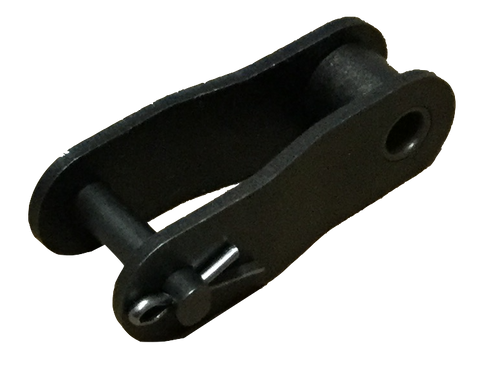

C2080 Heavy Double Pitch Roller Chain Offset Link (2" Pitch)

  • $6.28

Offset links, or half links, are used when a chain needs to be extended/shortened by only half the length of the normal pitch. These links feature cotterpins to seamlessly connect to original chain.

Double pitch roller chains are manufactured similarly to standard roller chain but with twice the pitch distance. Drive chains (A series chains) are designed with a figure-8 shaped side plate, and conveyor chains (C series) feature straight side plates. This lighter-weight chain is ideal for lower loads, moderate speeds, and larger sprockets.

Roller Width 0.625” Plate Thickness 1 0.156” Average Tensile Strength Lbs 18,000 LB
Maximum Allowable Load 2,400 LB Construction Cottered Rivet End To Centerline 0.699”
Tab Width 1.125'' Height Pin To Tab 0.578'' Application Extend/reduce chain length by 1/2 pitch.
Pin Diameter 0.312” Pitch 2.000” Height 0.890”
Plate Thickness 2 0.156” Connecting End To Centerline 0.829” Diameter 0.625”
