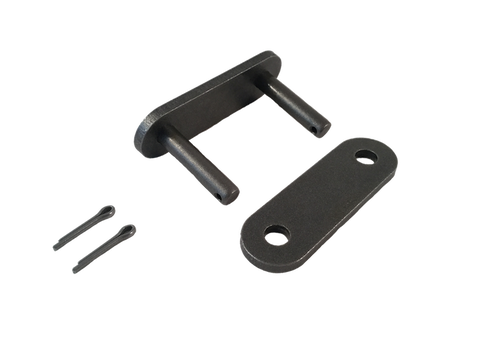

C2102 Double Pitch Carrier Chain Connecting Link 2 1/2" Pitch

Out of stock
SKU: C2102CL
$5.01

Double pitch roller chains are manufactured similarly to standard roller chain but with twice the pitch distance. Drive chains (A series chains) are designed with a figure-8 shaped side plate, and conveyor chains (C series) feature straight side plates. This lighter-weight chain is ideal for lower loads, moderate speeds, and larger sprockets.

Roller Width 0.750” Plate Thickness 1 0.187” Average Tensile Strength Lbs 26,200 LB
Maximum Allowable Load 3,900 LB Construction Riveted or Cottered Rivet End To Centerline 0.831”
Application Conveying Pin Diameter 0.375” Pitch 2.500”
Height 1.126” Plate Thickness 2 0.187” Connecting End To Centerline 0.969”
Diameter 1.562”
