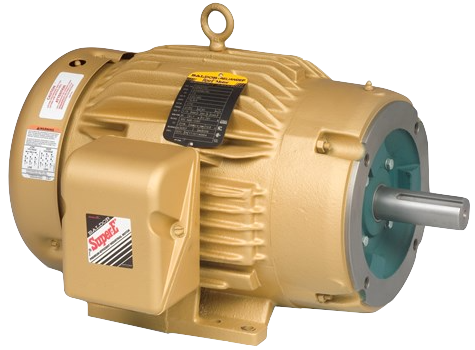

CEM3559T 3HP 145TC General Purpose Motor

Out of stock
SKU: CEM3559T
$601.25

Fractional horsepower motors are comprised of rolled steel and are available with bolt-on plates or C-face designs. This general purpose, 3-phase TEFC motor is designed for a vast amount of industrial applications.

Length 14.17'' Max Rpm 3600 RPM Hp Rating 3 HP
Voltage 230 V, 460 V Series 3532M Motor Application General Application
Motor Enclosure Design TEFC Nameplate Rpm 3450 RPM Motor Shaft Rotation Reversible
Full Load Amps 3.6 Amps Phase 3 Max Ambient Temperature 40 °C
Shaft Diameter 7/8'' Duty Continuous Nema Frame 145TC
Frequency 60 Hz Material Steel Mounting C-Face Rigid Base
