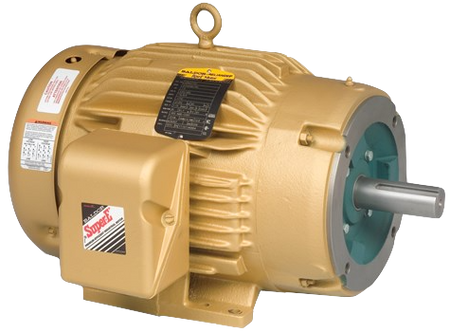

CEM3615T 5HP 184TC General Purpose Motor

Out of stock
SKU: CEM3615T
$560.71

Fractional horsepower motors are comprised of rolled steel and are available with bolt-on plates or C-face designs. This general purpose, 3-phase TEFC motor is designed for a vast amount of industrial applications.

Length 18.05'' Max Rpm 1800 RPM Hp Rating 5 HP
Voltage 230 V, 460 V Series 3642M Motor Application General Application
Motor Enclosure Design TEFC Nameplate Rpm 1750 RPM Motor Shaft Rotation Reversible
Full Load Amps 6.7 Amps Phase 3 Max Ambient Temperature 40 °C
Shaft Diameter 1 1/8'' Duty Continuous Nema Frame 184TC
Frequency 60 Hz Material Steel Mounting C-Face Rigid Base
