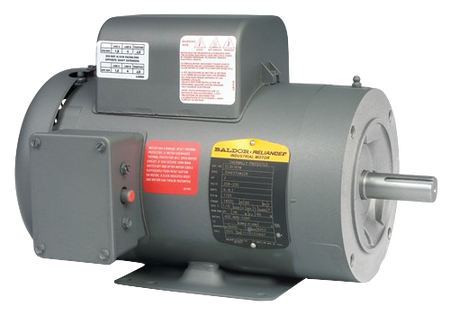

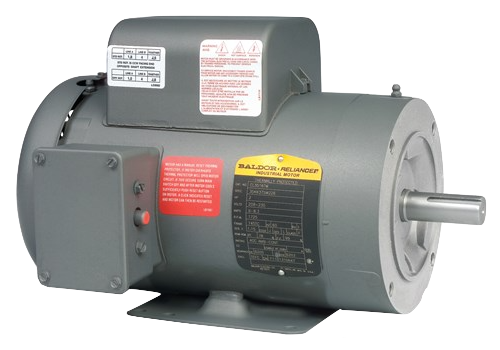

CL3514 1.5HP 56C General Purpose Motor

Out of stock
Barcode: 781568109311
$459.21

Fractional horsepower motors are comprised of rolled steel and are available with bolt-on plates or C-face designs. This general purpose, single phase TEFC motor is designed for a vast amount of industrial applications.

Length 14.12'' Max Rpm 1800 RPM Hp Rating 1.5 HP
Voltage 115 V, 230 V Series 3532LC Motor Application General Application
Motor Enclosure Design TEFC Nameplate Rpm 1725 RPM Motor Shaft Rotation Reversible
Full Load Amps 6.2 Amps Phase 1 Max Ambient Temperature 40 °C
Shaft Diameter 5/8'' Duty Continuous Nema Frame 56C
Frequency 60 Hz Material Steel Mounting C-Face Rigid Base
