D100B17 17-Tooth, 100 Standard Roller Chain Type B Double Sprocket (1 1/4" Pitch)

Out of stock
$118.23

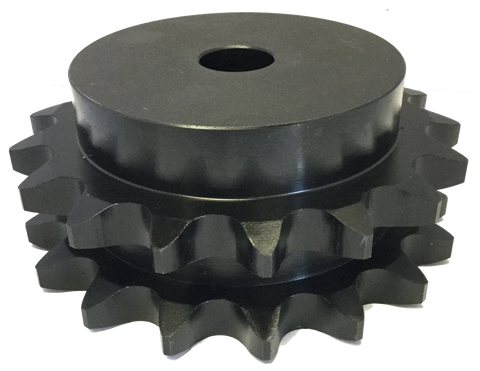

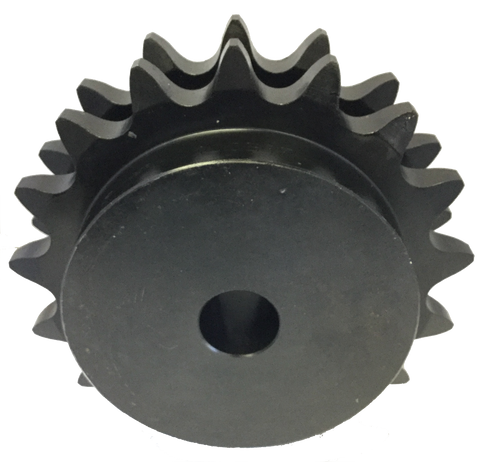

This Type B, minimum bore double sprocket drives #100 standard roller chain. Double sprockets are utilized where higher torque output is needed. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.

Bore Diameter 1 3/16” Construction Type B Minimum Bore Bore Type Rough Stock Bore
Length Through Bore 3 1/8'' Bushing Bore Range 1 3/16 - 3 1/2'' Application Applicaions with higher torque output.
Chain Number 100 Pitch 1 1/4'' Number Of Strands 2
Material Steel Transverse Pitch 2.077'' Outside Diameter 7.44''
Pitch Diameter 6.803'' Number Of Teeth 17 Thickness 0.669''
