D80Q16 16-Tooth, 80 Standard Roller Chain Split Taper Double Sprocket (1" Pitch)

Out of stock
$0.00

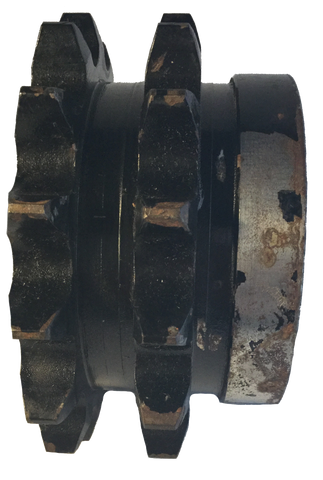

This double sprocket drives #80 standard roller chain and features a split taper bushing. Double sprockets are utilized where higher torque output is needed. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.

Bore Diameter 3/4” Construction Split Taper Bore Type Q1
Length Through Bore 2 1/2'' Bushing Bore Range 3/4 - 2 11/16'' Application Applications with higher torque output.
Chain Number 80 Pitch 1'' Number Of Strands 2
Material Steel Transverse Pitch 1.710'' Outside Diameter 5.63''
Pitch Diameter 5.126'' Number Of Teeth 16 Thickness 0.557''
