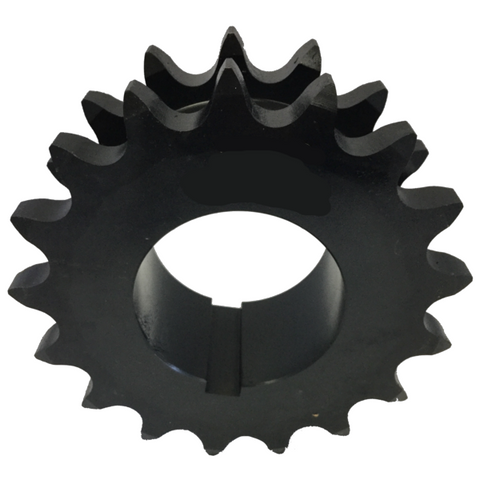

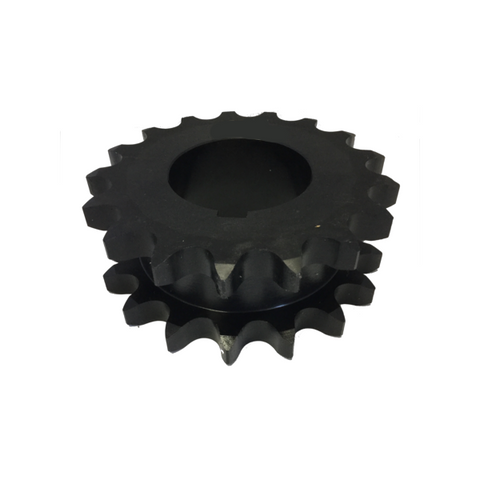

DS80Q17 17-Tooth, 80 Standard Roller Chain Split Taper Double Single Sprocket (1" Pitch)
This double single sprocket drives #80 standard roller chain and features a split taper bushing. Double single sprockets are used in applications where one drive shaft powers multiple components. The distance between each strand of teeth is greater than that of a normal double sprocket. Each chain can also exit the drive in different directions. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.
|Bore Diameter||3/4''||Construction||Split Taper||Bore Type||Q1|
|Length Through Bore||2 1/2”||Bushing Bore Range||3/4 - 2 11/16''||Application||Machinery where multiple components are powered by a single drive.|
|Number Of Strands||2||Material||Steel||Transverse Pitch||2.203''|
|Outside Diameter||5.95''||Bushing Series||Q1||Pitch Diameter||5.442''|
|Number Of Teeth||17||Thickness||0.575''|
