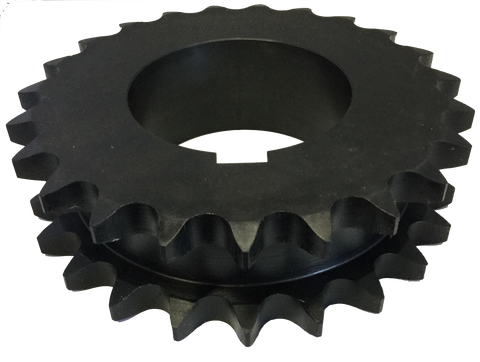

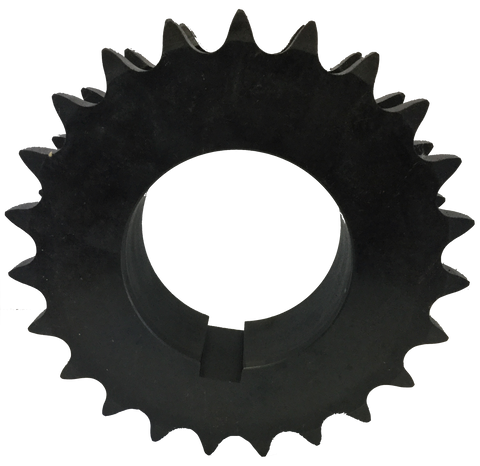

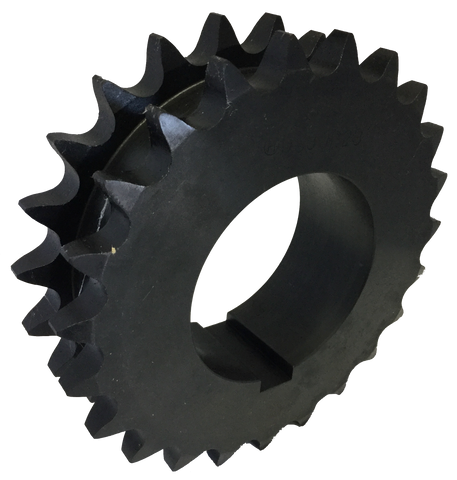

DS80R23 23-Tooth, 80 Standard Roller Chain Split Taper Double Single Sprocket (1" Pitch)

  • $143.38

This double single sprocket drives #80 standard roller chain and features a split taper bushing. Double single sprockets are used in applications where one drive shaft powers multiple components. The distance between each strand of teeth is greater than that of a normal double sprocket. Each chain can also exit the drive in different directions. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.

Bore Diameter 1 1/8” Construction Split Taper Bore Type R1
Length Through Bore 2 7/8'' Bushing Bore Range 1 1/8 - 3 3/4'' Application Machinery where multiple components are powered by a single drive.
Chain Number 80 Width 3.359” Pitch 1''
Number Of Strands 2 Material Steel Transverse Pitch 2.203''
Outside Diameter 7.88'' Pitch Diameter 7.344'' Number Of Teeth 23
Thickness 0.575''
