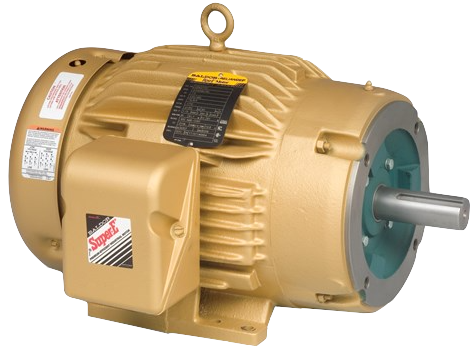

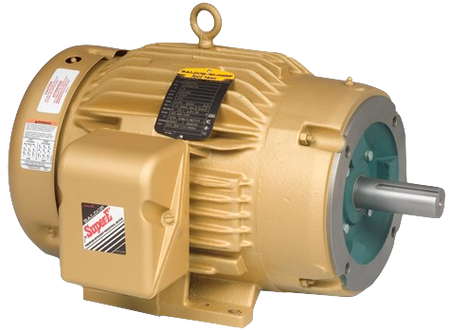

EM3611 3HP 182 General Purpose Motor

Only 1 left
Barcode: 781568783825
$664.17

Fractional horsepower motors are comprised of rolled steel and are available with bolt-on plates or C-face designs. This general purpose, 3-phase TEFC motor is designed for a vast amount of industrial applications.

Length 15.69'' Max Rpm 1800 RPM Hp Rating 3 HP
Voltage 230 V, 460 V Series 3632M Motor Application General Application
Nameplate Rpm 1760 RPM Motor Shaft Rotation Reversible Full Load Amps 4.2 Amps
Phase 3 Max Ambient Temperature 40 °C Shaft Diameter 7/8''
Duty Continuous Nema Frame 182 Frequency 60 Hz
Material Steel Mounting Rigid base
