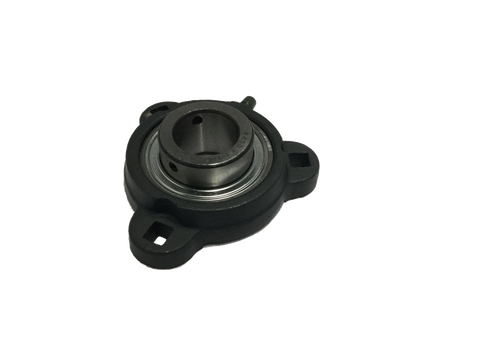

FB150URX114 Flange Block Bearing (1 1/4" Bore)
Regular price
$14.64
Couldn't load pickup availability
Flange block bearings are ideal when the bearing mounting surface and shaft axis are perpendicular. They are commonly available in 2-, 3-, or 4-hole configurations. Features a ductile iron housing, 3-bolt flange, and a set screw locking device with narrow inner race.
| Bore Diameter | 1 1/4'' | Temperature Range | -25° F to 225° F | Bore Type | Round |
| Max Rpm | 3500 RPM | Finish | Gray Paint | Series | FB150UR |
| Seal Type | Contact | Duty | Light Duty | Application | General Industrial |
| Locking Device | Set Screw Lock | Insert Material | 52100 Bearing Steel | Insert Bearing Type | Set Screw Lock - Narrow Inner Race |
| Bearing Type | 3-Hole | Material | Ductile Iron | Mounting | 3-Bolt Flange |
| Outside Diameter | 4.800'' | Bolt Circle Diameter | 3 15/16'' | Number Of Bolts | 3 |
| Maximum Angular Misalignment | 1-1/2 ° | Lubrication Type | #2 Lithium Grease | Expansion Type | Non-Expansion Bearing (Fixed) |
| Bearing Style | Flange Block | Thickness | 1.450'' | Diameter | 3.540'' |
