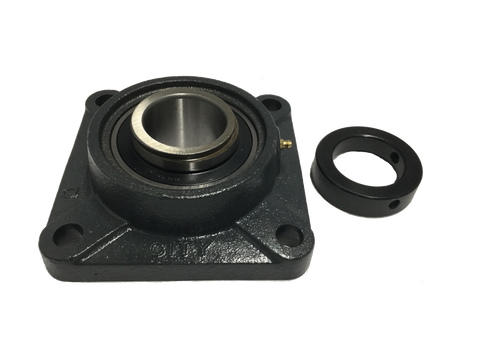

FB220DRWX2 Flange Block Bearing (2" Bore)

Out of stock
Regular price $42.17

Flange block bearings are ideal when the bearing mounting surface and shaft axis are perpendicular. They are commonly available in 2-, 3-, or 4-hole configurations. Features a ductile iron housing, 4-bolt flange, and an eccentric collar locking device with wide inner race.

Length 6.380'' Bore Diameter 2'' Temperature Range -25° F to 225° F
Bore Type Round Max Rpm 2500 RPM Bolt Diameter 0.670''
Finish Gray Paint Series FB220DRW Seal Type Contact
Duty Normal Duty Application General Industrial Locking Device Eccentric Lock
Insert Material 52112 Bearing Steel Insert Bearing Type Eccentric Lock - Wide Inner Race Bearing Type 4-Hole
Material Ductile Iron Mounting 4-Bolt Flange Bolt Circle Diameter 7.248''
Number Of Bolts 4 Maximum Angular Misalignment 1-1/2 ° Lubrication Type #2 Lithium Grease
Expansion Type Non-Expansion Bearing (Fixed) Bearing Style Flange Block Thickness 2.937''
