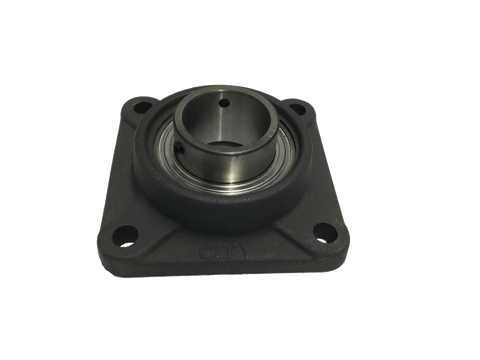

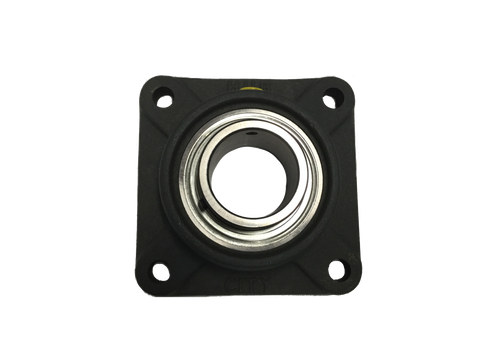

FB250URX112 Flange Block Bearing (1 1/2" Bore)
Regular price
$0.00
Couldn't load pickup availability
Flange block bearings are ideal when the bearing mounting surface and shaft axis are perpendicular. They are commonly available in 2-, 3-, or 4-hole configurations. Features a cast iron housing, 4-bolt flange, and a set screw locking device with narrow inner race.
Length | 5.120'' | Bore Diameter | 1 1/2'' | Temperature Range | -25° F to 225° F |
Bore Type | Round | Max Rpm | 3000 RPM | Bolt Diameter | 0.630'' |
Finish | Gray Paint | Series | FB250UR | Seal Type | Contact |
Duty | Normal Duty | Application | General Industrial | Locking Device | Set Screw Lock |
Insert Material | 52136 Bearing Steel | Insert Bearing Type | Set Screw Lock - Narrow Inner Race | Bearing Type | 4-Hole |
Material | Cast Iron | Mounting | 4-Bolt Flange | Bolt Circle Diameter | 5.677'' |
Number Of Bolts | 4 | Maximum Angular Misalignment | 1-1/2 ° | Lubrication Type | #2 Lithium Grease |
Expansion Type | Non-Expansion Bearing (Fixed) | Bearing Style | Flange Block | Thickness | 1.811'' |
