FB250X2S Flange Block Bearing (2" Bore)

Out of stock
Regular price $96.11

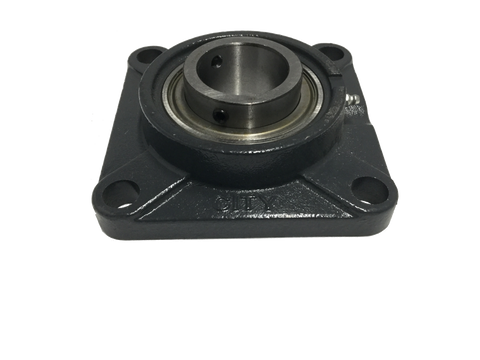

Flange block bearings are ideal when the bearing mounting surface and shaft axis are perpendicular. They are commonly available in 2-, 3-, or 4-hole configurations. Features a cast iron housing, 4-bolt flange, and a set screw locking device with narrow inner race.

Length 5.630'' Bore Diameter 2'' Temperature Range -25° F to 225° F
Bore Type Round Max Rpm 2500 RPM Bolt Diameter 0.630''
Finish Gray Paint Series FB250 Seal Type Contact
Duty Normal Duty Application General Industrial Locking Device Set Screw Lock
Insert Material 52146 Bearing Steel Insert Bearing Type Set Screw Lock - Narrow Inner Race Bearing Type 4-Hole
Material Cast Iron Mounting 4-Bolt Flange Bolt Circle Diameter 6.181''
Number Of Bolts 4 Maximum Angular Misalignment 1-1/2 ° Lubrication Type #2 Lithium Grease
Expansion Type Non-Expansion Bearing (Fixed) Bearing Style Flange Block Thickness 1.913''
