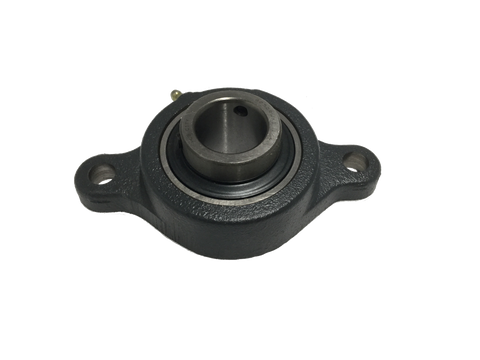

FB260DRWX1 Flange Block Bearing (1" Bore)
Regular price
$0.00
Couldn't load pickup availability
Flange block bearings are ideal when the bearing mounting surface and shaft axis are perpendicular. They are commonly available in 2-, 3-, or 4-hole configurations. Features a ductile iron housing, 2-bolt flange, and a set screw locking device with wide inner race.
| Length | 4.880'' | Bore Diameter | 1'' | Temperature Range | -25° F to 225° F |
| Bore Type | Round | Max Rpm | 3500 RPM | Bolt Diameter | 0.492'' |
| Finish | Gray Paint | Series | FB260DRW | Seal Type | Contact |
| Duty | Normal Duty | Application | General Industrial | Locking Device | Set Screw Lock |
| Insert Material | 52148 Bearing Steel | Insert Bearing Type | Set Screw Lock - Wide Inner Race | Bearing Type | 2-Hole |
| Material | Ductile Iron | Mounting | 2-Bolt Flange | Bolt Circle Diameter | 3.890'' |
| Number Of Bolts | 2 | Maximum Angular Misalignment | 1-1/2 ° | Lubrication Type | #2 Lithium Grease |
| Expansion Type | Non-Expansion Bearing (Fixed) | Bearing Style | Flange Block | Thickness | 1.523'' |
| Diameter | 2.760'' |
