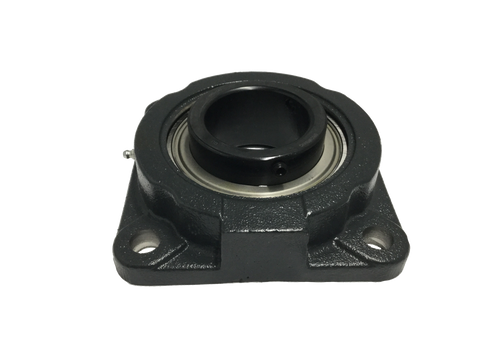

FB350X3716 Flange Block Bearing (3 7/16" Bore)
Regular price
$464.96
Couldn't load pickup availability
Flange block bearings are ideal when the bearing mounting surface and shaft axis are perpendicular. They are commonly available in 2-, 3-, or 4-hole configurations. Features a cast iron housing, 4-bolt flange, and a set screw locking device with narrow inner race.
| Length | 8.380'' | Bore Diameter | 3 7/16'' | Temperature Range | -25° F to 225° F |
| Bore Type | Round | Max Rpm | 1800 RPM | Bolt Diameter | 0.781'' |
| Finish | Gray Paint | Series | FB350 | Seal Type | Contact |
| Duty | Medium Duty | Application | General Industrial | Locking Device | Set Screw Lock |
| Insert Material | 52181 Bearing Steel | Insert Bearing Type | Set Screw Lock - Narrow Inner Race | Bearing Type | 4-Hole |
| Material | Cast Iron | Mounting | 4-Bolt Flange | Bolt Circle Diameter | 9.546'' |
| Number Of Bolts | 4 | Maximum Angular Misalignment | 1-1/2 ° | Lubrication Type | #2 Lithium Grease |
| Expansion Type | Non-Expansion Bearing (Fixed) | Bearing Style | Flange Block | Thickness | 2.652'' |
