H4014X118 14-Tooth, 40 Standard Roller Chain Finished Bore Sprocket (1/2" Pitch, 1 1/8" Bore)

In stock - 5 items available
$10.16

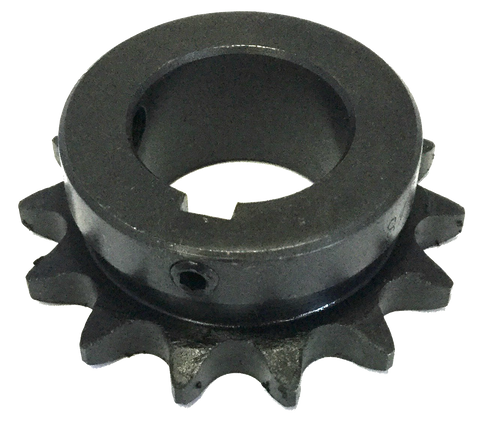

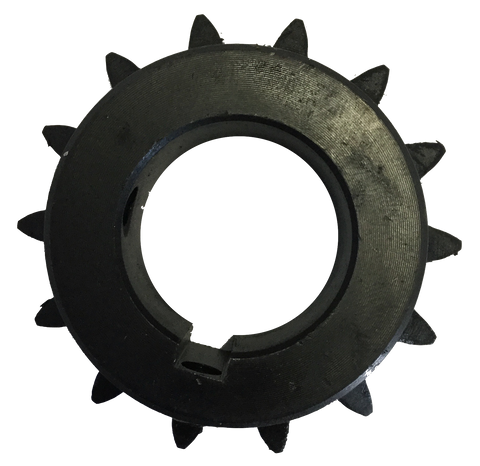

This Type B, minimum bore sprocket drives #40 standard roller chain and comes stock with a 1 1/8” finished bore. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.

Bore Diameter 1 1/8” Construction Type B Minimum Bore Bore Type Finished Bore
Length Through Bore 7/8'' Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) Chain Number 40
Pitch 1/2'' Number Of Strands 1 Material Steel
Outside Diameter 2.49'' Pitch Diameter 2.247'' Number Of Teeth 14
Thickness 0.284''
