H4032X112 32-Tooth, 40 Standard Roller Chain Finished Bore Sprocket (1/2" Pitch, 1 1/2" Bore)

Out of stock
SKU: H4032X112
$38.46

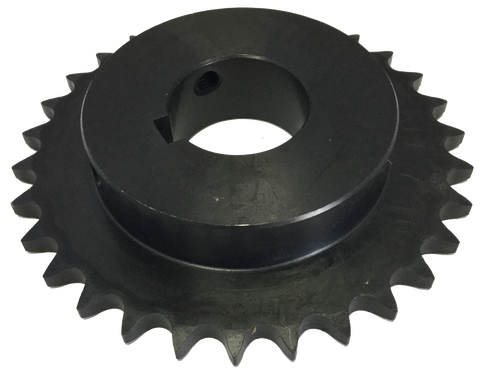

This Type B, minimum bore sprocket drives #40 standard roller chain and comes stock with a 1 1/2” finished bore. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.

Bore Diameter 1 1/2” Construction Type B Minimum Bore Bore Type Finished Bore
Length Through Bore 15/16'' Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) Chain Number 40
Pitch 1/2'' Number Of Strands 1 Material Steel
Outside Diameter 5.38'' Pitch Diameter 5.101'' Number Of Teeth 32
Thickness 0.284''
