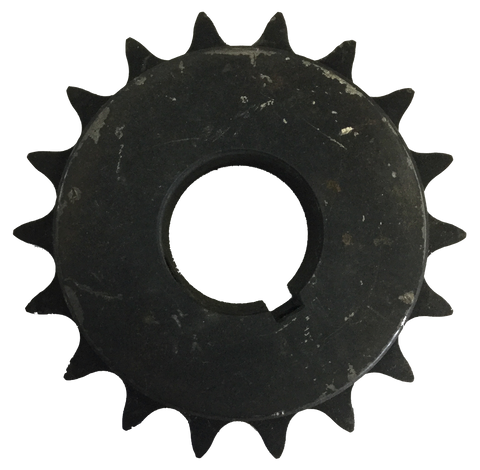

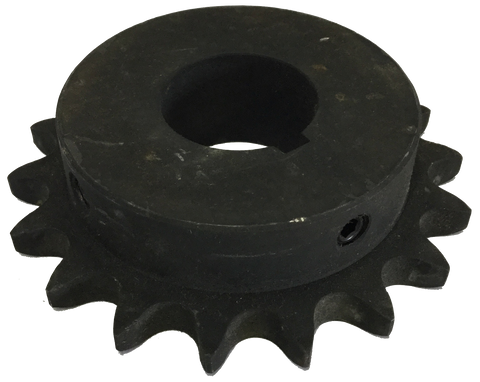

H5018X114 18-Tooth, 50 Standard Roller Chain Finished Bore Sprocket (5/8" Pitch, 1 1/4" Bore)

Out of stock
SKU: H5018X114
Regular price $11.15

This Type B, minimum bore sprocket drives #50 standard roller chain and comes stock with a 1 1/4” finished bore. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.

Bore Diameter 1 1/4” Construction Type B Minimum Bore Bore Type Finished Bore
Length Through Bore 1'' Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) Chain Number 50
Pitch 5/8'' Number Of Strands 1 Material Steel
Outside Diameter 3.92'' Pitch Diameter 3.599'' Number Of Teeth 18
Thickness 0.343''
