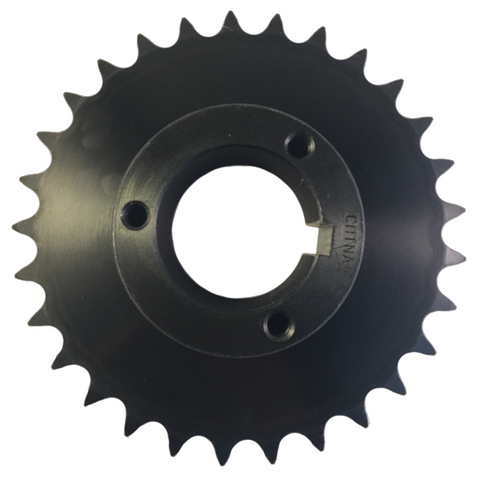

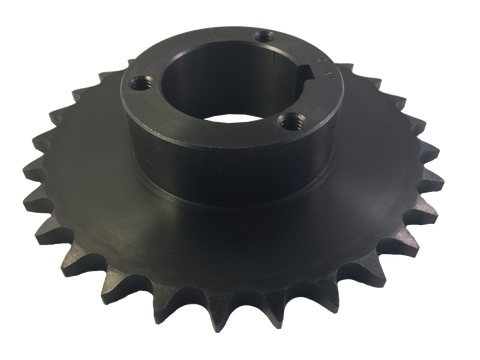

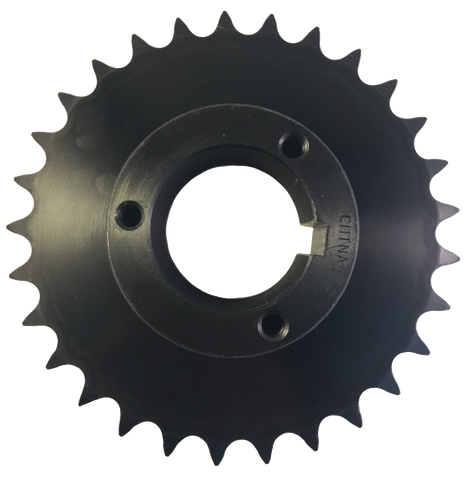

H50P29 29-Tooth, 50 Standard Roller Chain Split Taper Sprocket (5/8" Pitch)
This sprocket drives #50 standard roller chain and features a split taper bushing. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.
| Bore Diameter | 1/2” | Construction | Split Taper | Bore Type | P1 |
| Length Through Bore | 2 15/16'' | Bushing Bore Range | 1/2 - 1 3/4'' | Application | Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) |
| Chain Number | 50 | Width | 2.188” | Pitch | 5/8'' |
| Number Of Strands | 1 | Material | Steel | Outside Diameter | 6.12'' |
| Pitch Diameter | 5.781'' | Number Of Teeth | 29 | Thickness | 0.343'' |
