H6023X1716 23-Tooth, 60 Standard Roller Chain Finished Bore Sprocket (3/4" Pitch, 1 7/16" Bore)

Out of stock
$17.88

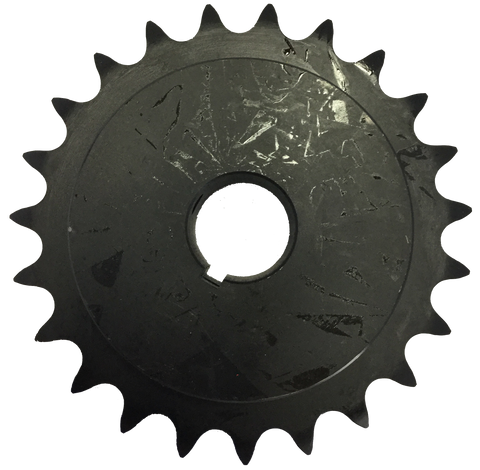

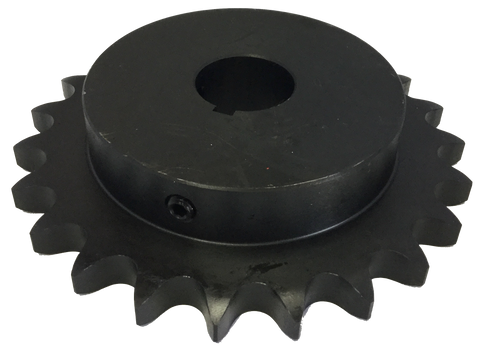

This Type B, minimum bore sprocket drives #60 standard roller chain and comes stock with a 1 7/16” finished bore. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.

Bore Diameter 1 7/16” Construction Type B Minimum Bore Bore Type Finished Bore
Length Through Bore 1 3/16'' Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) Chain Number 60
Pitch 3/4'' Number Of Strands 1 Material Steel
Outside Diameter 5.91'' Pitch Diameter 5.508'' Number Of Teeth 23
Thickness 0.459''
