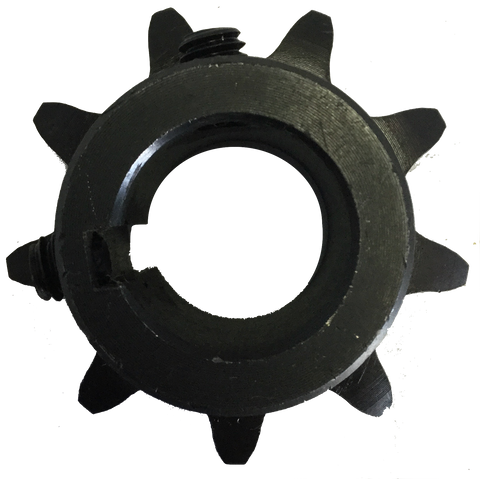

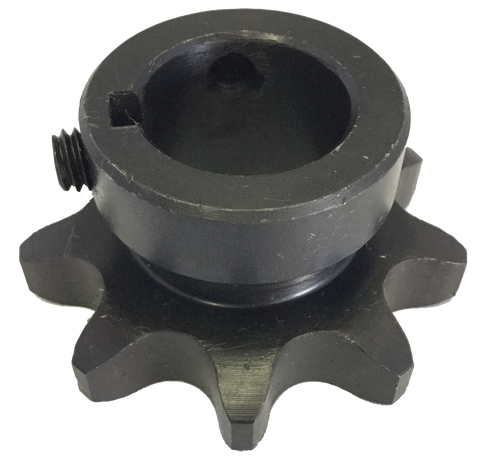

H609X1 9-Tooth, 60 Standard Roller Chain Finished Bore Sprocket (3/4" Pitch, 1" Bore)
Regular price
$14.93
Couldn't load pickup availability
This Type B, minimum bore sprocket drives #60 standard roller chain and comes stock with a 1” finished bore. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.
Bore Diameter | 1” | Construction | Type B Minimum Bore | Bore Type | Finished Bore |
Length Through Bore | 1 3/16'' | Application | Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) | Chain Number | 60 |
Pitch | 3/4'' | Number Of Strands | 1 | Material | Steel |
Outside Diameter | 2.50'' | Pitch Diameter | 2.193'' | Number Of Teeth | 9 |
Thickness | 0.459'' |
