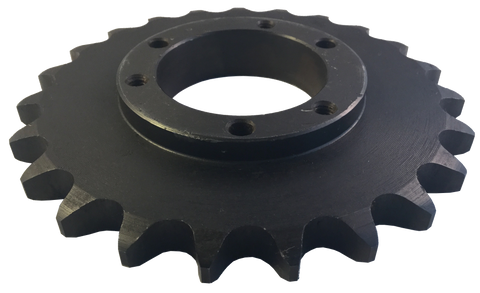

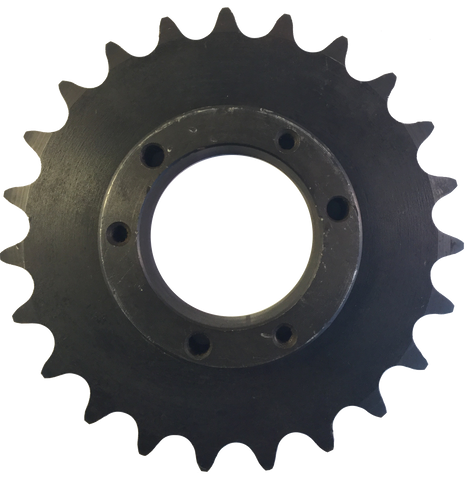

H60SDS23 23-Tooth, 60 Standard Roller Chain Quick Disconnect Sprocket (3/4" Pitch)

Out of stock
SKU: H60SDS23
$56.88

This sprocket drives #60 standard roller chain and features a quick disconnect (QD) bushing. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.

Bore Diameter 1/2” Construction Quick Disconnect (QD) Bore Type SDS
Length Through Bore 1 5/16'' Bushing Bore Range 1/2 - 2'' Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.)
Chain Number 60 Width 1.656” Pitch 3/4''
Number Of Strands 1 Material Steel Outside Diameter 5.91''
Pitch Diameter 5.508'' Number Of Teeth 23 Thickness 0.459''
