H8016X114 16-Tooth, 80 Standard Roller Chain Finished Bore Sprocket (1" Pitch, 1 1/4" Bore)

Only 2 left
$30.43

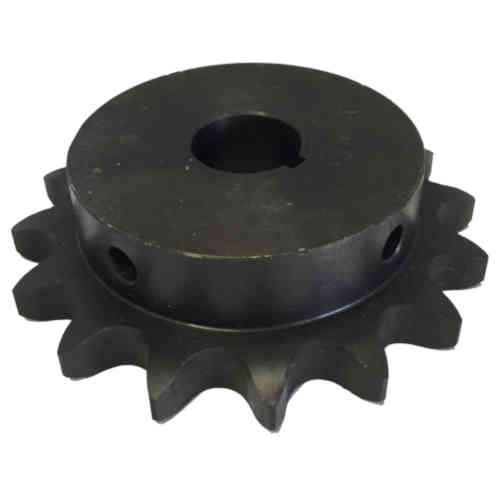

This Type B, minimum bore sprocket drives #80 standard roller chain and comes stock with a 1 1/4” finished bore. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.

Bore Diameter 1 1/4” Construction Type B Minimum Bore Bore Type Finished Bore
Length Through Bore 1 1/2'' Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) Chain Number 80
Pitch 1'' Number Of Strands 1 Material Steel
Outside Diameter 5.63'' Pitch Diameter 5.126'' Number Of Teeth 16
Thickness 0.575''
