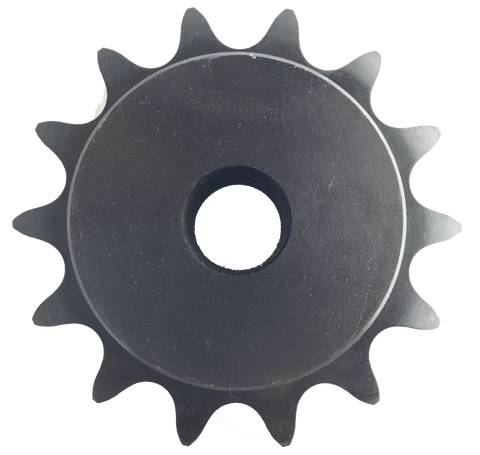

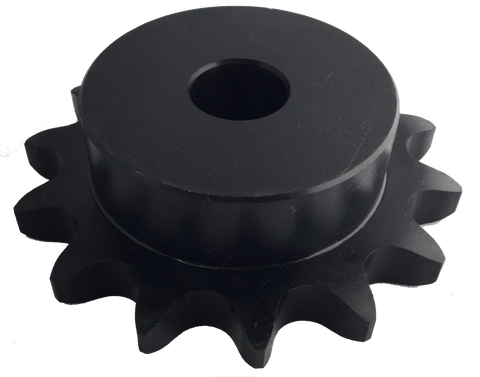

Froedge H80B14 14-Tooth, 80 Standard Roller Chain Type B Sprocket (1" Pitch)

  • $20.96

This Type B, minimum bore sprocket drives #80 standard roller chain. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain. CUSTOM BORING AVAILABLE - CALL 1-888-868-5891

Bore Diameter 3/4'' Construction Type B Minimum Bore Bore Type Rough Stock Bore
Length Through Bore 1 1/2” Bushing Bore Range 3/4 - 2 1/4'' Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.)
Chain Number 80 Pitch 1'' Number Of Strands 1
Material Steel Outside Diameter 4.98'' Pitch Diameter 4.494''
Number Of Teeth 14 Thickness 0.575''
