HCQ1-HUB HCQ1 Bushing w/ Finished Bore (2 7/16" Bore)

In stock - 27 items available
$24.49

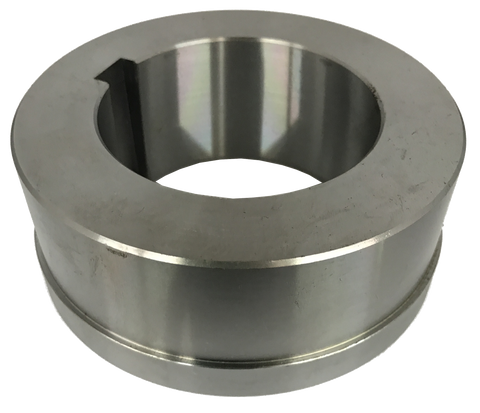

This hub features a tapered bore, is machined from a single solid piece of steel to improve durability, and is often welded directly into drums, rollers and will accept a Q1 bushing.

Application Sheaves & Sprockets
Bore Diameter 2 7/8
Material Steel
Bore Type Finished with Keyway
Keyway Width 1/2
Outside Diameter 4.500
Length Through Bore 1.750
Pilot Diameter 4.375
Bolt Circle Diameter 3.375
Number Of Bolts 3
