HDRF262-30-1-H-145TC Right Angle Hollow Bore Gear Reducer

Out of stock
$374.46

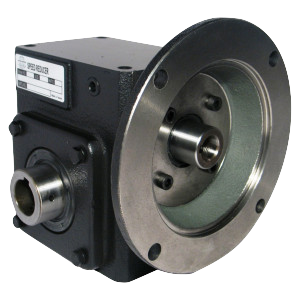

This right angle worm gear reducer features a flange input and a hollow bore output. Gear reducers effectively reduce speed and increase torque.

Motor Application Lower speed, higher torque in various motor applications. Ratio 30:1 Input Power 2.22 HP
Input Speed 1800 RPM Output Speed 58 RPM Input Shaft 7/8''
Output Shaft 1 7/16'' Center Distance 2 5/8'' Nema Frame 145TC
Overhung Load 1000 LB Material Cast Iron Mounting C-Face Rigid Base
Keyway Size 3/16'' X 3/32'' (input), 3/8'' X 5/32'' (output) Torque Capacity 1827 in-lbs
